Empennage Fairings

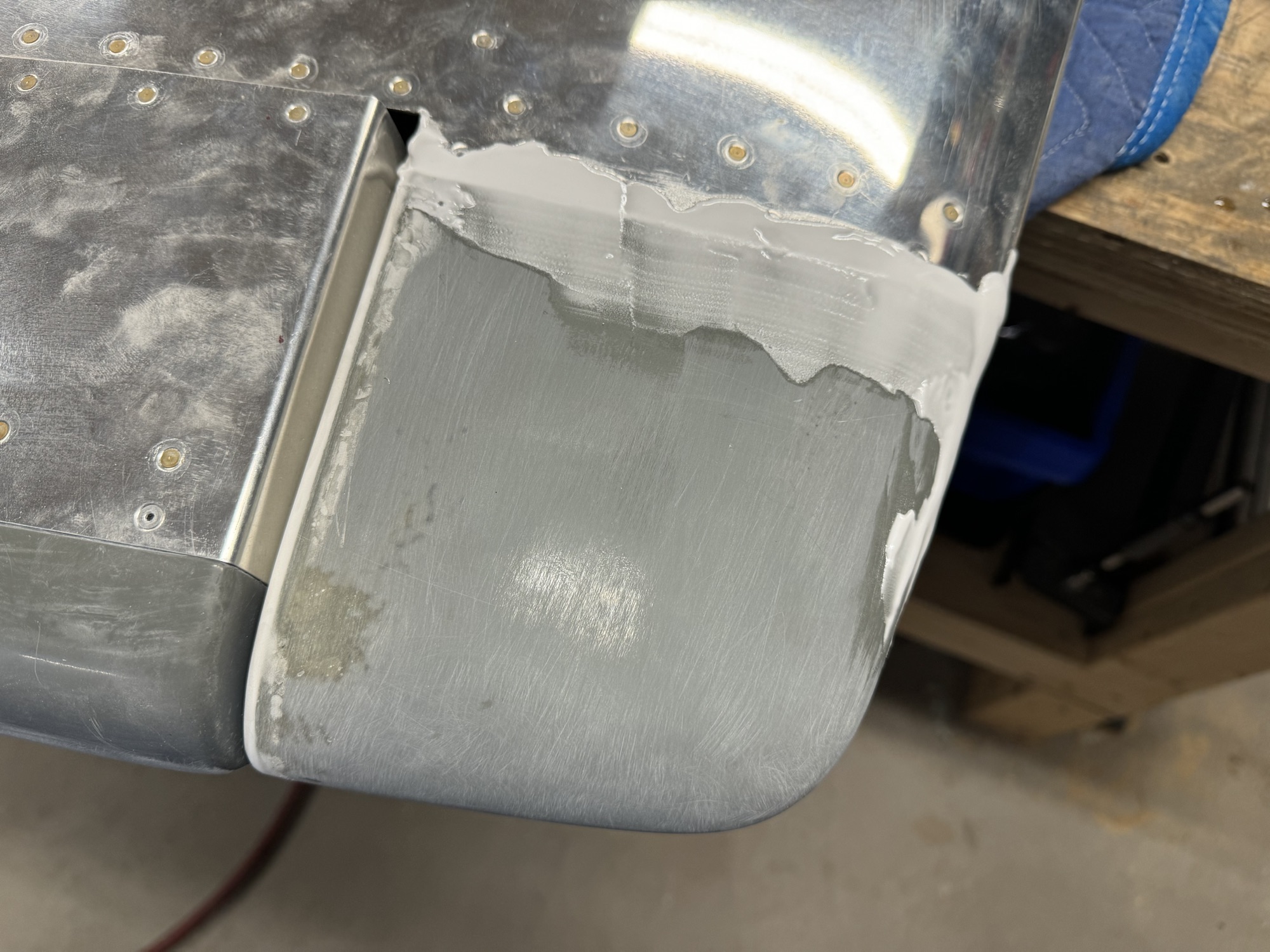

I did quite a bit of filler and sanding and I’m about as far as I want to get with it at this point. I’ll come back when the plane is nearing completing to get this done the way I want it.

I spent most of my time today and yesterday filling the low spots and sanding. Not alot of an update here but wanted to include pictures. I do need to order some thin fiberglass so that I can glass over the edges between the fiberglass parts and the aluminum. I’ve Read more

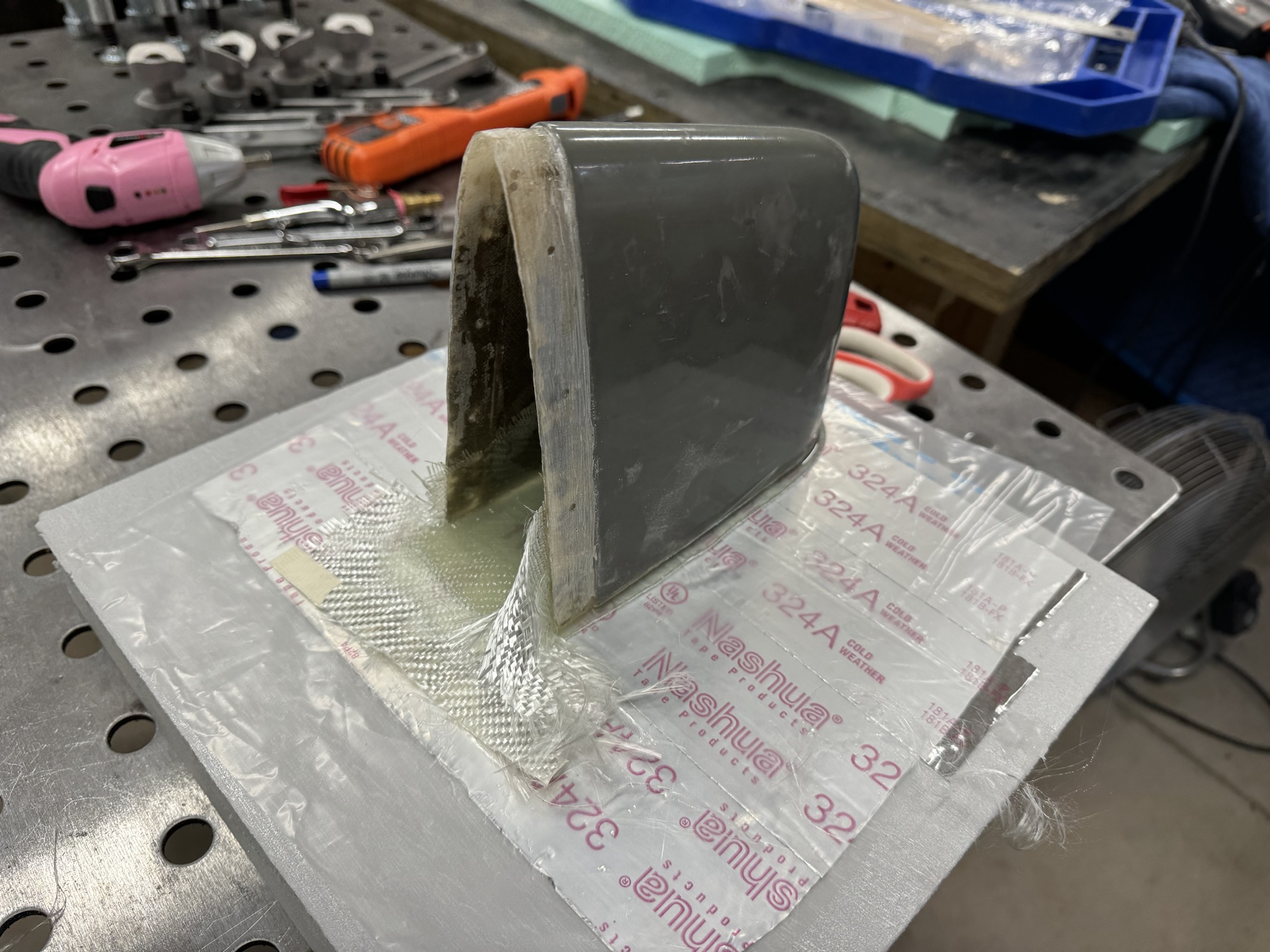

I trimmed and sanded down the first two layers of glass and it definitely wasn’t thick enough to cover the rear gap. I added three more layers and that still didn’t add enough thickness but I wanted to go ahead and get the interior glass layers done first so I Read more

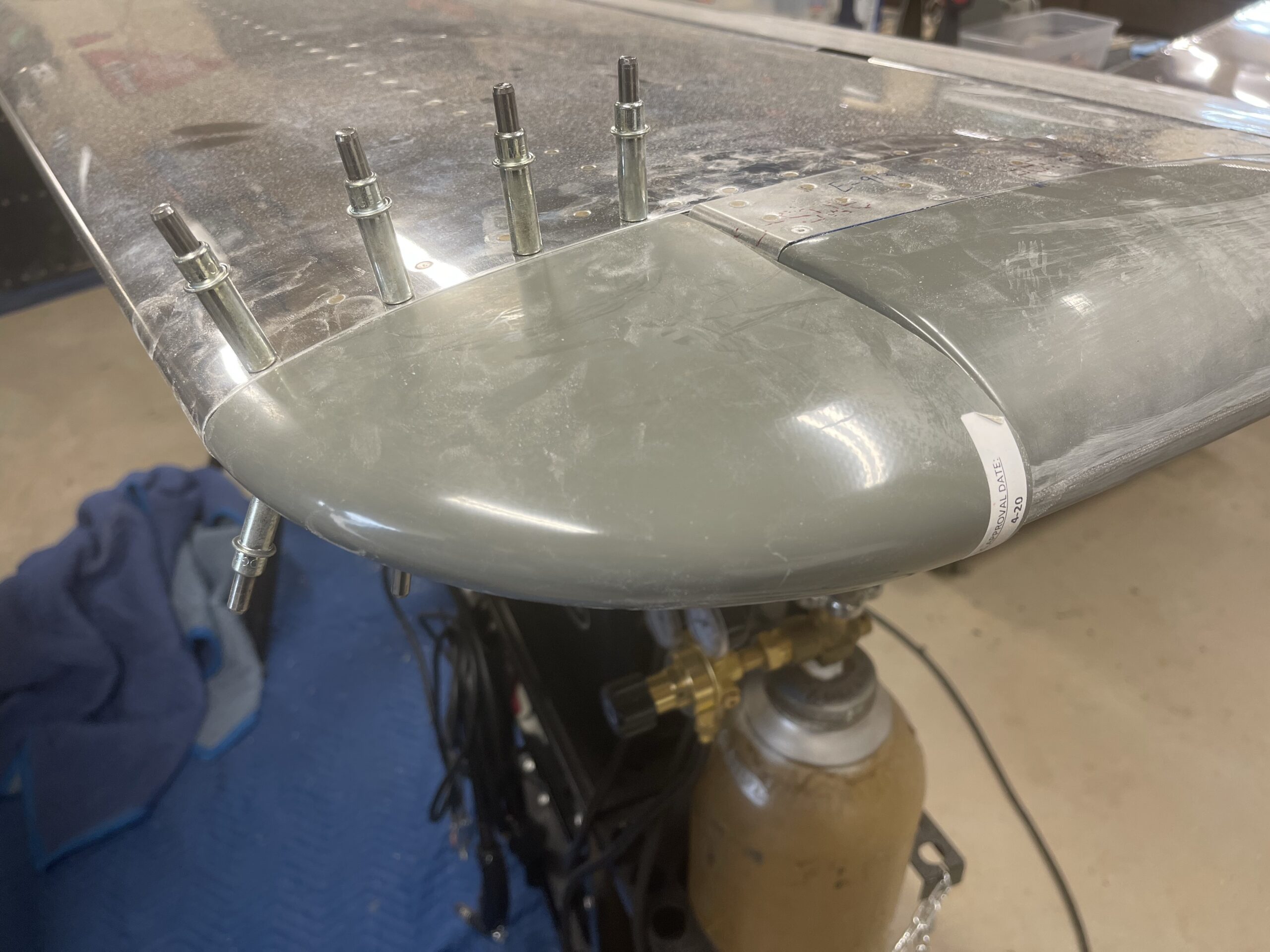

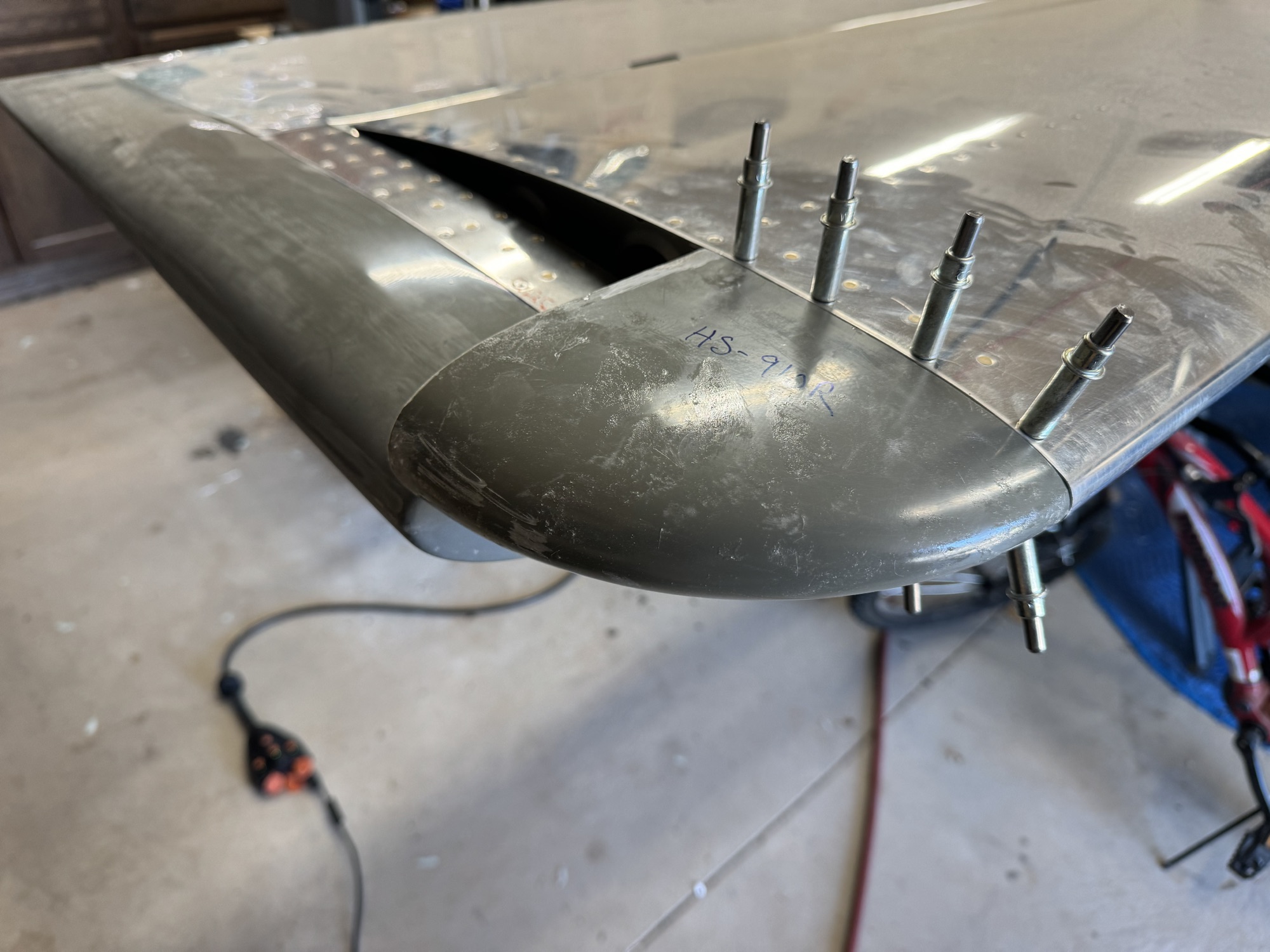

I got the HS tips sanded, countersunk, cleaned, primed and installed tonight. I also got the fiberglass for the first two layers done for the VS tip tonight. Had to strap it down so it wouldn’t move on me as it was still wanting to bow in a few millimeters. Read more

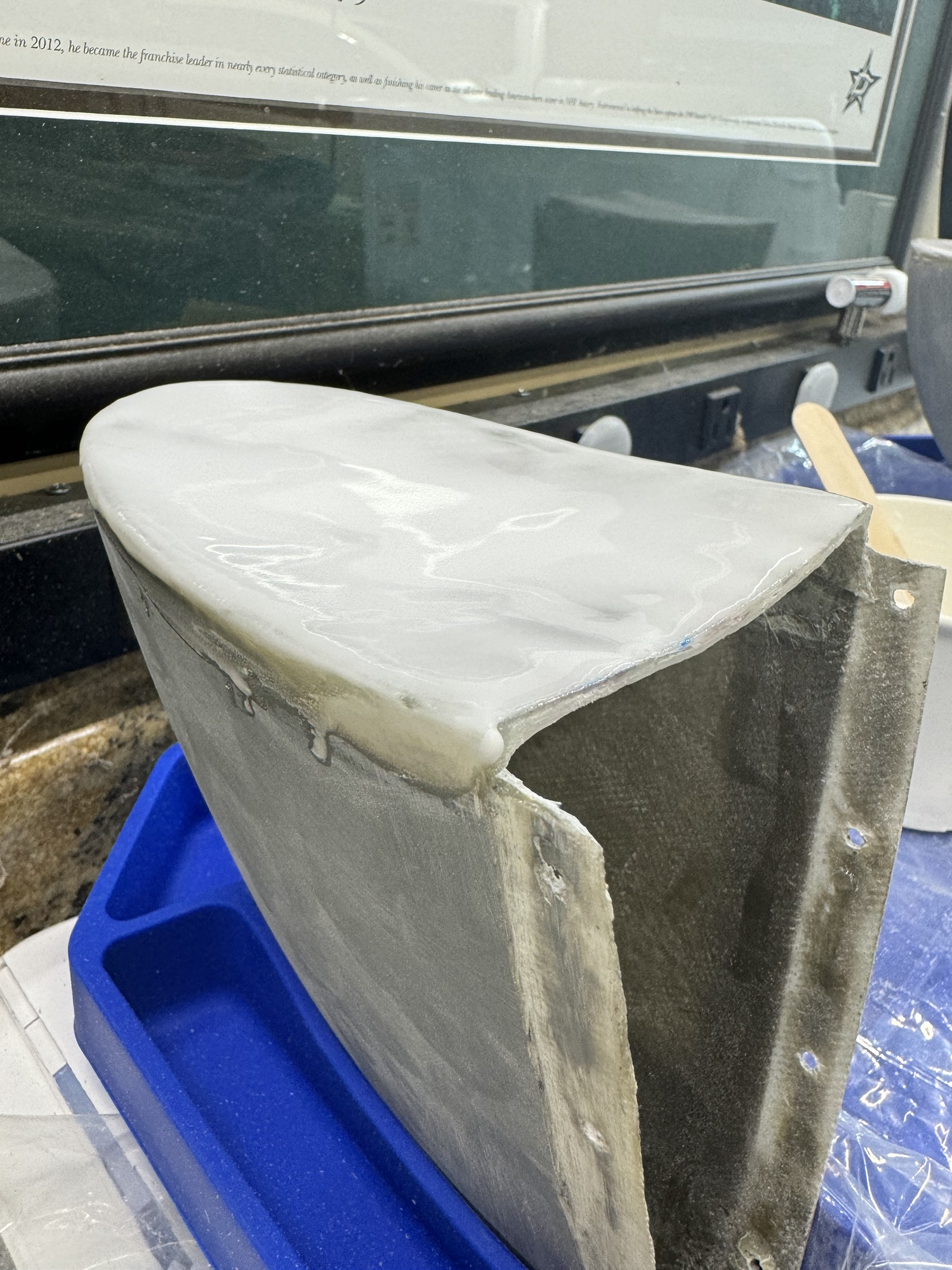

I spent time getting the VS tip cut and match drilled so that I can get it ready to fiberglass the back. It didn’t take too terrible long to get it ready but did take quite a bit of heat and molding to get the shape right. It had sunken Read more

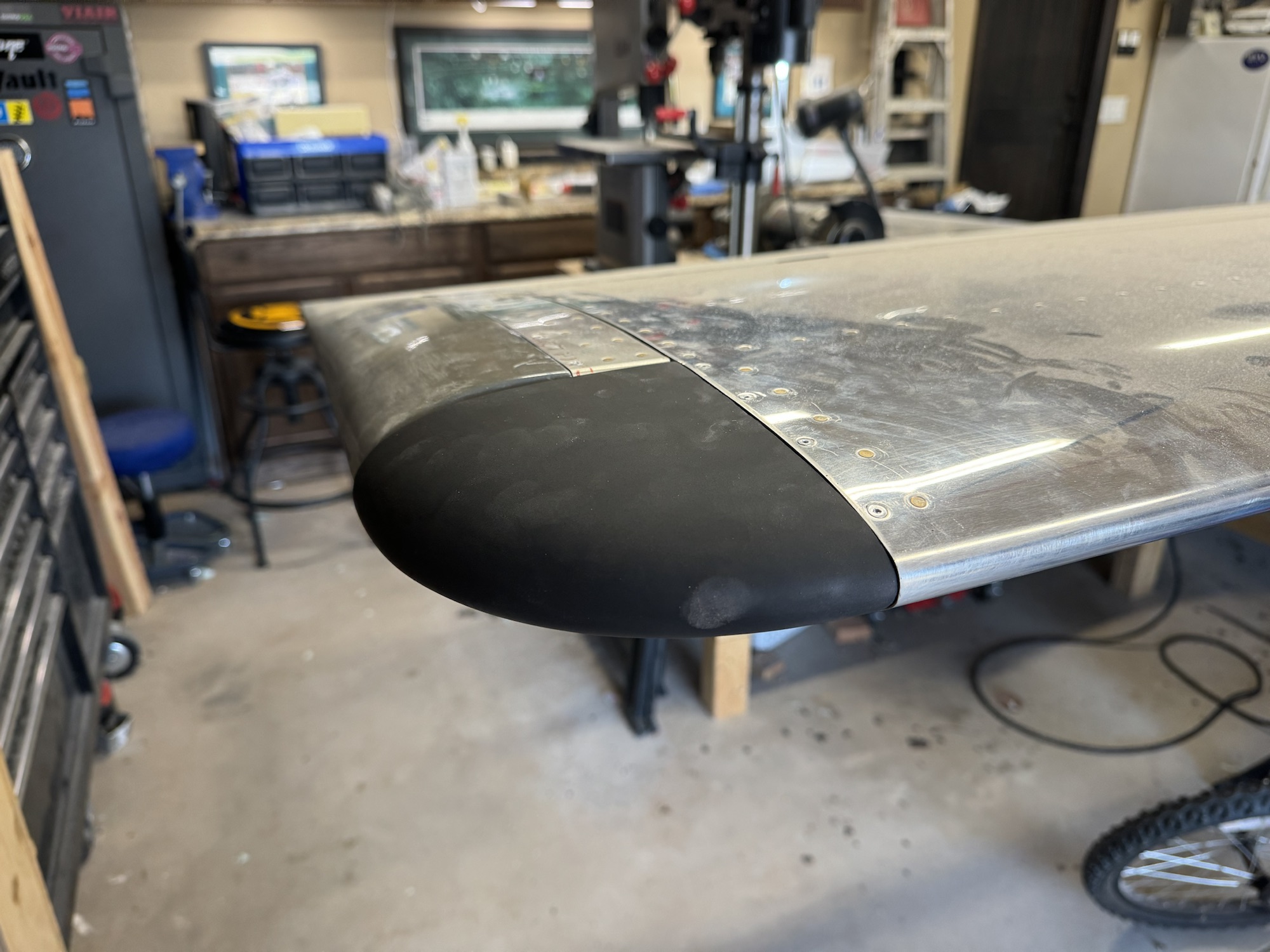

The horizontal stabilizer tips are now finished. It took a bit of getting over the fear of messing up the parts to start but I did it LOL. I formed foam to get the right shape to the outside layer. I wrapped it with AC duct tape but I forgot Read more

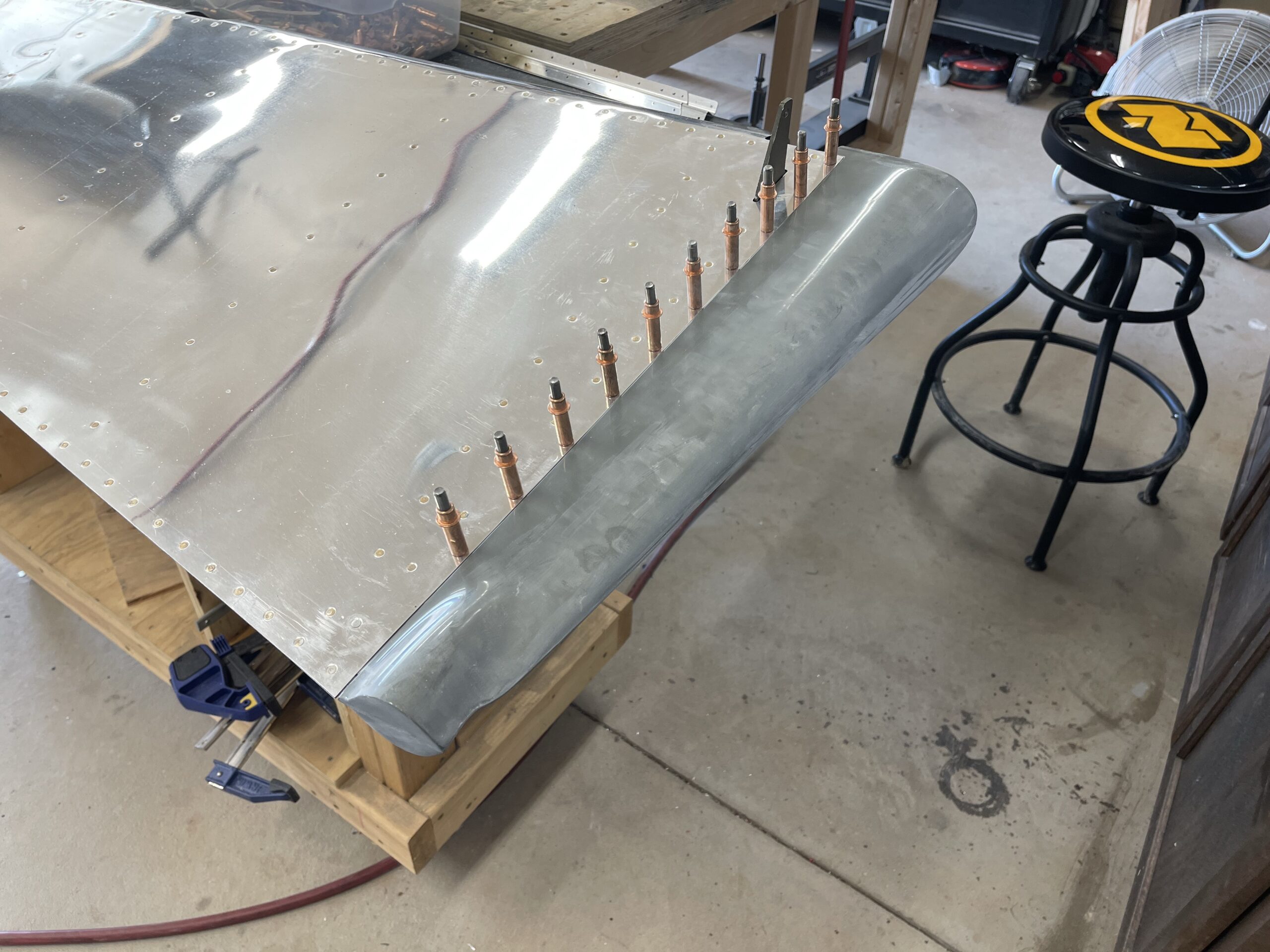

I found a post from someone where they had the same issue with their horizontal stabilizer tips being out of shape. They used clamps and heat to shape it, which I remember from the fiberglass 101 class that they stated that if you get fiberglass warm enough (180F or so) Read more
