S20 - Bottom Skins

Wings

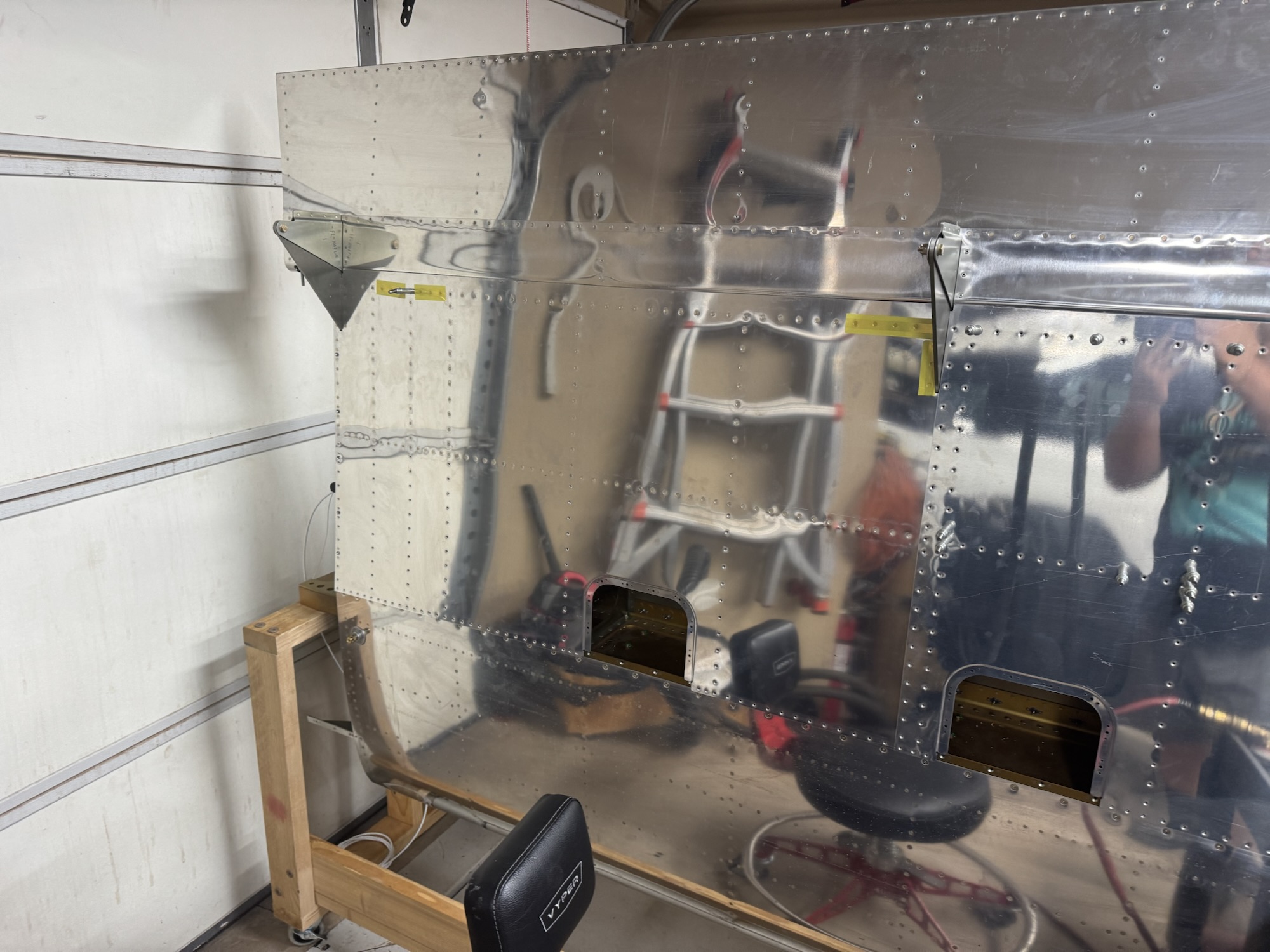

First Day on Bottom Skin Riveting

I didn’t get a ton of time as I thought this would take alot more time with two people. But I decided to try it myself and I got fairly good results. I’m not really happy with a couple of my rivets because it is hard for me to determine Read more

By olanandkate, 1 monthJuly 26, 2025 ago
Wings

Right Wing Skins Drilled, Deburred, Dimpled and Primed

Alot of work today! The first thing I did today was I went to the storage unit and did an inventory of the seat kit that arrived a few weeks ago. They emailed me one so I could do a proper inventory and I was missing more than I thought Read more

By olanandkate, 2 monthsJuly 25, 2025 ago
Wings

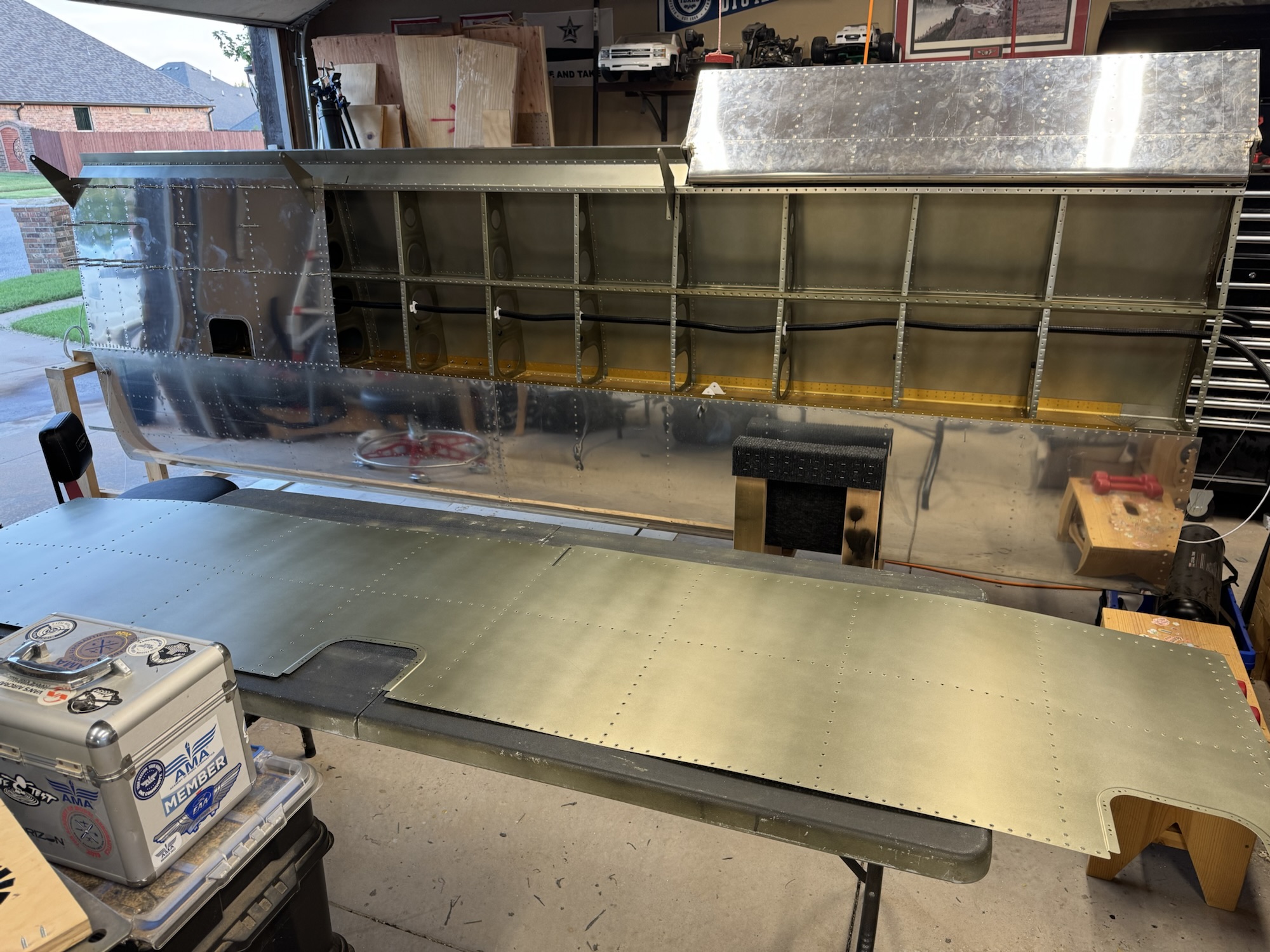

Wing Skins Initial Fitting and Cutting Pitot Tube Hole

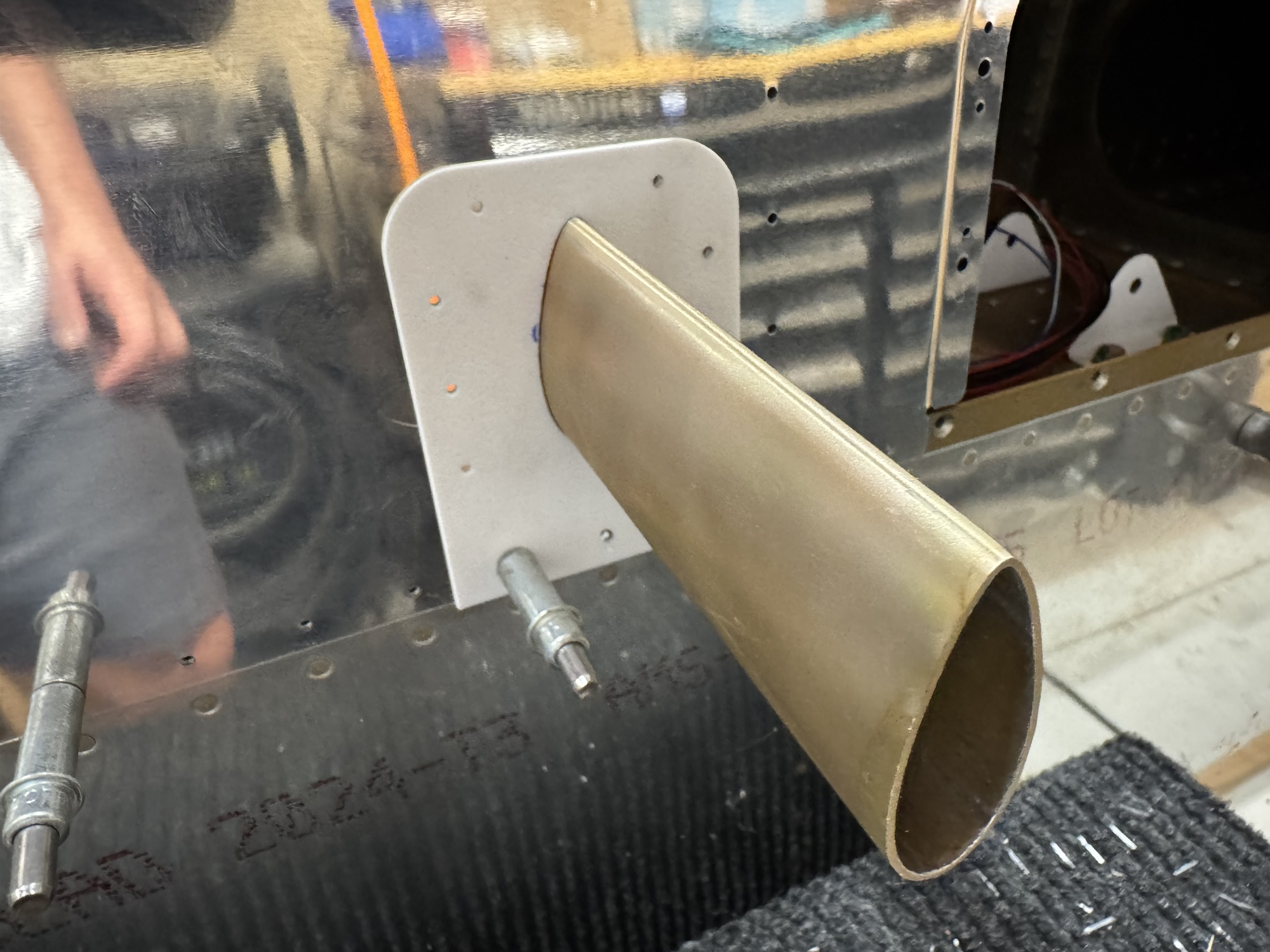

I got the skins out of the attic today with the help of the boys. I got the pitot tube initially drilled along the spar edge and got the side bracket drilled as well. I used the 3D printed template from Allan Glen and it was almost spot on. the Read more

By olanandkate, 2 monthsJuly 24, 2025 ago
Wings

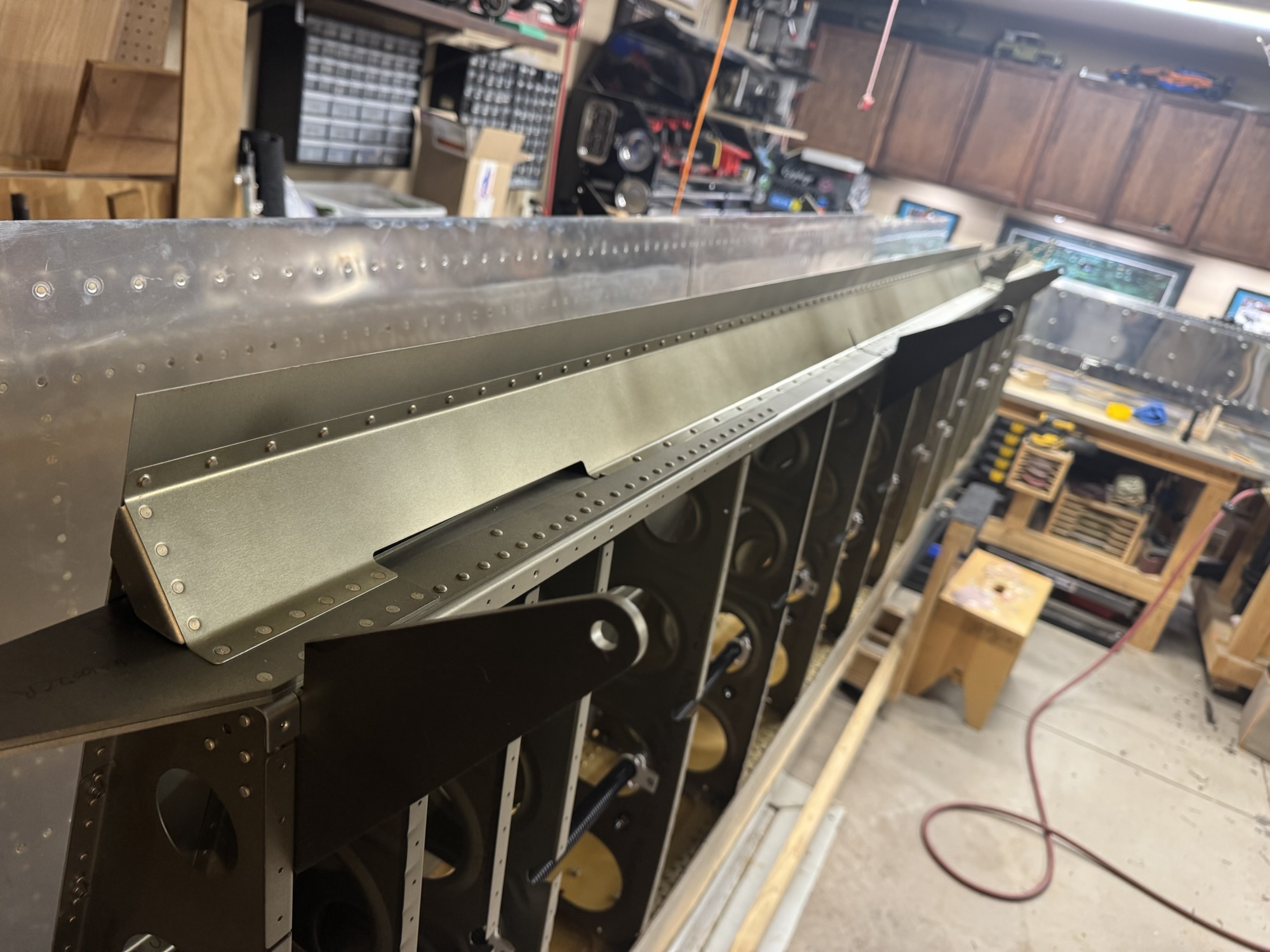

Flap and Aileron Gap Skins Installed

First, but pretty easy first steps on putting the bottom wing skins on, but took a bit of time to complete tonight. I got all of the skins deburred, dimpled, primed and riveted tonight that cover the gap between the wing and the flaps and ailerons. Luckily they were final Read more

By olanandkate, 2 monthsJuly 23, 2025 ago

Posts pagination

Previous 1 2

Aircraft Build Time

Airplane sectionBuild time (hrs)
Avionics/Electronics9
S06 - Vertical Stabilizer22.5
S07 - Rudder34.25
S08 - Horizontal Stabilizer49.75
S09 - Elevators59
S10 - Tailcone75.75
S11 - Empennage Attach27.75
S12 - Empennage Fairings26.5
S13 - Main Spar18.25
S14 - Wing Ribs35.5
S15 - Rear Spar29.25
S16 - Top Skins32.75
S17 - Outboard Leading Edge34.75
S18 - Fuel Tank79.5
S20 - Bottom Skins42.25
S21 - Aileron35.5
S22 - Flap44
S23 - Aileron Actuation11
S24 - Wing Tip Installation14.5
S25 - Mid Fuselage Bulkheads0.25
S26 - Mid Fuselage Ribs Bottom Skins0.25
S27 - Firewall0.25
S28 - Forward Fuselage Bulkhead Ribs0.25
S29 - Fuselage Side Skins4
S30 - Step Installation2
S31 - Upper Forward Fuselage0.25
S32 - Tailcone Attach14.75
S33 - Baggage Area18.25
S35 - Access & Floors3.5
S36 - Brake Lines4.5
S38 - Rudder Pedals & Brake System12.5
Total742.5
