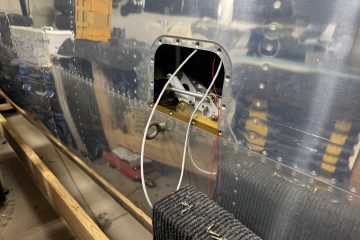

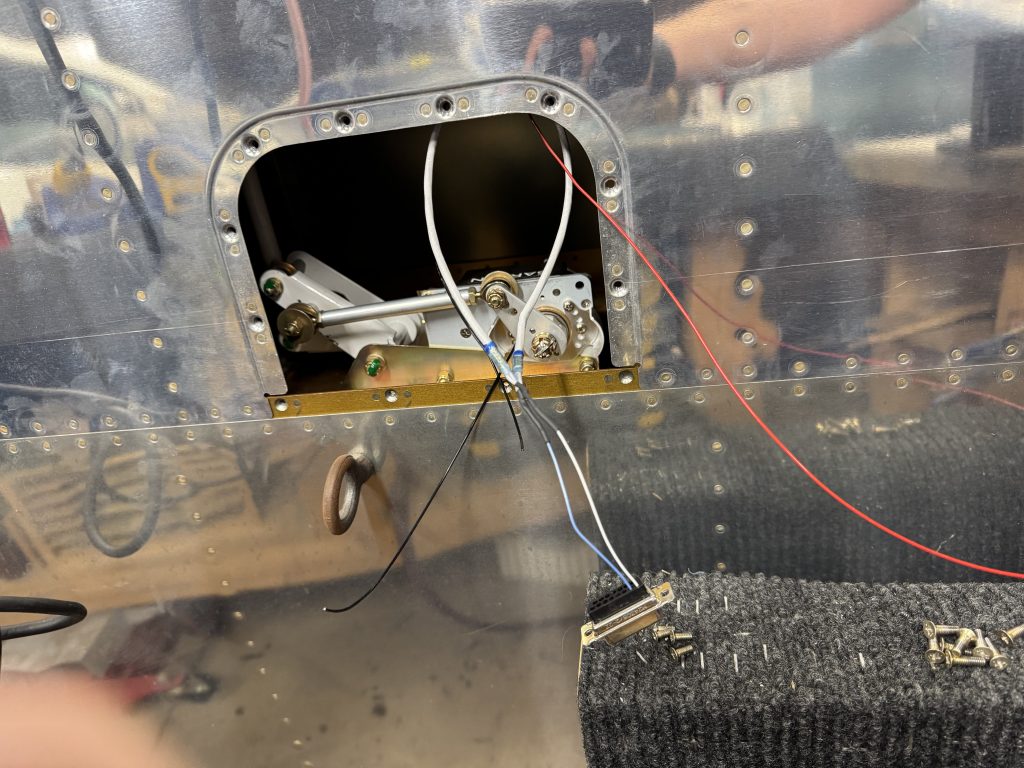

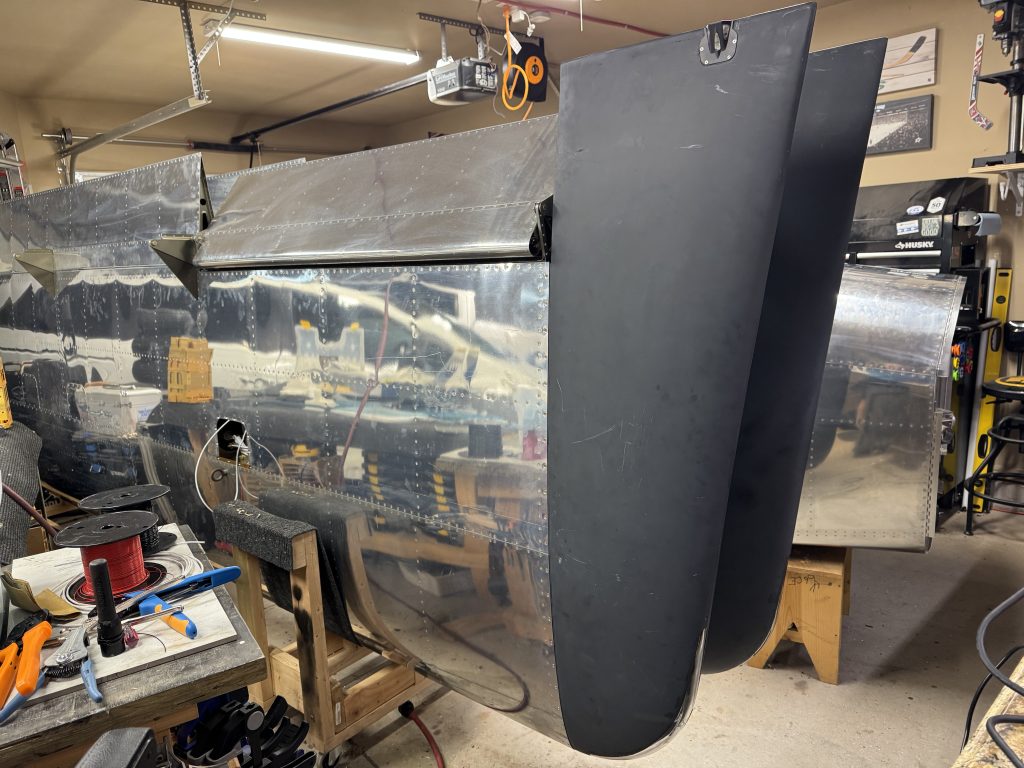

I wrapped up the CANBUS wiring and the rest of the harness for the GMU 11 magnetometer. I then remounted the wing tip and finished the CANBUS wiring at the roll servo. The larger wire gauge for the servo should be here sometime this week which will allow me to finish up the cabling to the servo.

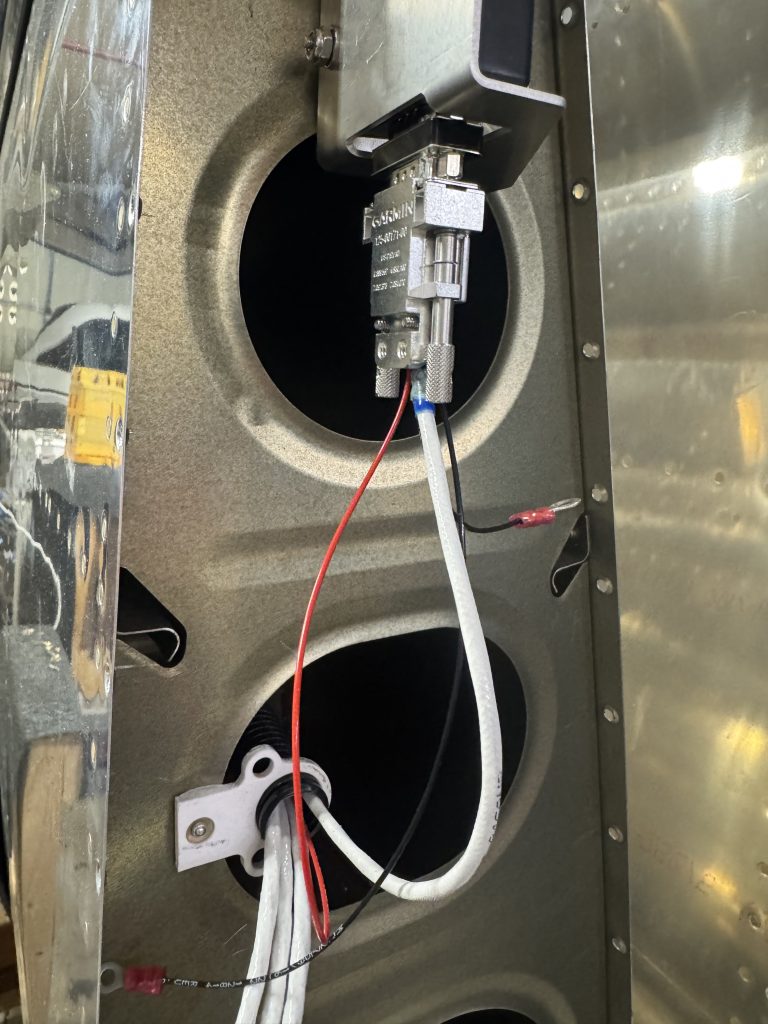

I got the CANBUS wire run for the right wing. I also got the power run for the GMU and the GSA but I decided I’m going to up the wire size for the GSA Read more
I decided to go ahead and get the ELT installed since I have all of that ready to go. It went well up until I started pulling the rivets at the top. The first one Read more
Last night before I went to bed I decided I needed to 3d print the components I was going to be installing in my system so I could plan space, cable runs, etc. And below Read more
