I had my boys help me get the spars out of the attic and I started work on that. I started match drilling the parts but they were already final sized. I forgot that quite a few parts from this wing kit are already final sized. They did need some Read more…
I finally got everything put back together and checked all of the control throws and everything looked great! The elevator goes a few degrees beyond the expected amount. The one odd part I’m going to have to figure out is that I am unable to get the 35 degrees of Read more…
I decided to go back and fix a mistake I made with the elevator trim bellcrank mounts. I was off when I drilled them and the elevator trim was not within specifications. I drilled out the rivets, threw the mounts away and built two new from scratch. This time they Read more…
I did quite a bit of filler and sanding and I’m about as far as I want to get with it at this point. I’ll come back when the plane is nearing completing to get this done the way I want it.
I spent most of my time today and yesterday filling the low spots and sanding. Not alot of an update here but wanted to include pictures. I do need to order some thin fiberglass so that I can glass over the edges between the fiberglass parts and the aluminum. I’ve Read more…
I trimmed and sanded down the first two layers of glass and it definitely wasn’t thick enough to cover the rear gap. I added three more layers and that still didn’t add enough thickness but I wanted to go ahead and get the interior glass layers done first so I Read more…
I got the HS tips sanded, countersunk, cleaned, primed and installed tonight. I also got the fiberglass for the first two layers done for the VS tip tonight. Had to strap it down so it wouldn’t move on me as it was still wanting to bow in a few millimeters. Read more…

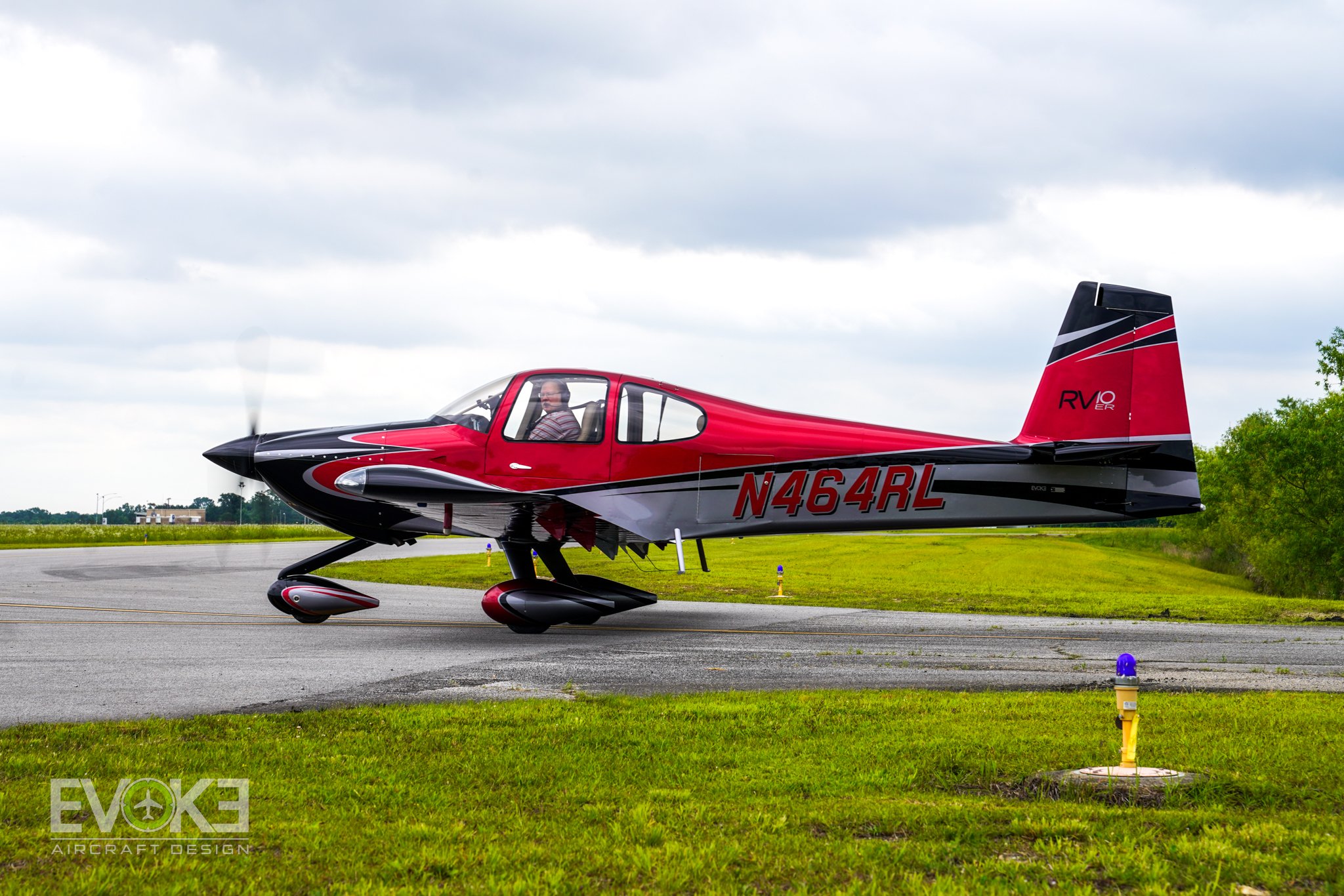

I was looking at some of the Evoke scheme designs that they have publicly available after seeing their design work on the Van’s Aircraft RV-10 that was on display at Oshkosh this year. I really like this design though it is a bit darker than I would want. Maybe some Read more…
I spent time getting the VS tip cut and match drilled so that I can get it ready to fiberglass the back. It didn’t take too terrible long to get it ready but did take quite a bit of heat and molding to get the shape right. It had sunken Read more…
The horizontal stabilizer tips are now finished. It took a bit of getting over the fear of messing up the parts to start but I did it LOL. I formed foam to get the right shape to the outside layer. I wrapped it with AC duct tape but I forgot Read more…
