Empennage
Trim Tabs Completed and Installed
Finally I finished the trim tabs and they were true and straight this time. I Installed them and I also got the static ports installed too. Over all a good night and glad this is done now!
Empennage
Static Ports Drilled & Trim Tabs Glued
I got the static ports drilled but the back side was way too deep for me to get the nut on the back so I’ll screw those in tomorrow. I did all of the priming and assembly of the trim tabs today. I stead of putting them in the wood Read more…
Empennage
Elevator Trim Tab Dimpling
Super hot today so didn’t work as much as I wanted. Supposed to be 90 tomorrow so we’ll see. It is prepped for priming and assembly at least.
Empennage
Trim Tabs Formed and Drilled
The trim tabs arrived later than expected. They didn’t come until Thursday which I had other stuff that ended up happening that night. So I finally got a chance to work on it all today. I got the skins bent to their proper angle and then I got the ends Read more…
Workshop
Garmin Pitot Arrived & Organization
I needed to finish organizing the wing kit hardware and I finally got a new hardware bin from Amazon that showed up. My wife also got a new label printer which works very well. So I started splitting up the hardware into their separate bins and putting labels on them. Read more…
Empennage
Laser Cut Parts Issue & Delayed Inspection
Eric called me yesterday stating he did not feel well. This will delay the inspection which is fine. I started working on the trim tabs again and I noticed that the trim tab spars are laser cut parts. I looked and saw burn splatter in quite a few places as Read more…
Empennage
Elevator Trim Tab Skin Taping
I only got 15 minute but I wanted to document it. I got the tape on in the places the manual asks us to so that I can buff the area where the foam ribs will be glued. I need to double check the measurements before I actually sand it Read more…
Empennage
Elevator Trim Tabs Rework Step 1
I finally got a new print out of the templates for the trim tabs. I glued them to the foam and cut them out last night. I did much better on them this time around as I knew the pitfalls with my machinery and also with my impatience LOL. I Read more…
Empennage

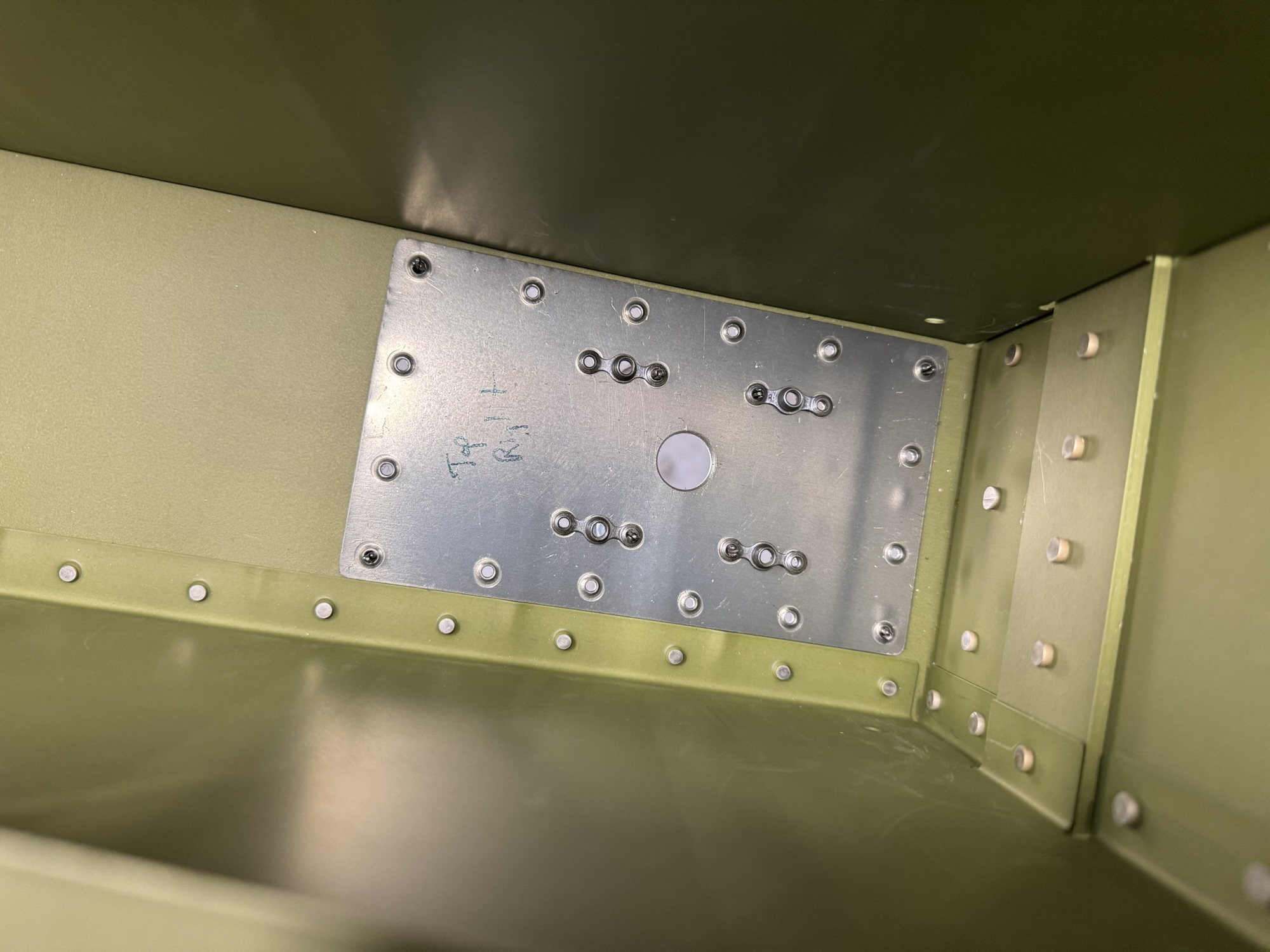

Trim Servo Assembly Initial Work
I started work on the trim servo assembly. I ended up wasting some work on trim bell crank tab as I cut too much out of it. I ordered more aluminum from Van’s to remake the one tab I made. I also finished the other tabs that are used to Read more…
Empennage
Elevator Push Rod Completed and Rudder Installed
I got the pushrod completed today. I just created 60 ml of primer and just swirled it around on the inside. I checked and it created a complete coverage on the inside. I let it dry for an hour or two before putting the caps on each end with the Read more…
